- Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
- Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.
- 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.
- 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
- Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.
Call for Price

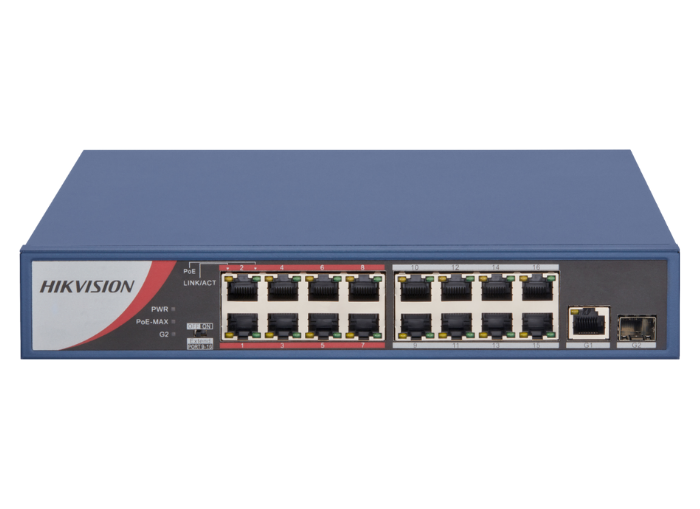

SKU: DS-3E0318P-E/M(b)
Categories: All Products, Network Transmission, PoE Switch
Tag: Hikvision PoE Switch
Specification
Description
|
Network Parameters
|
|
|
Port Number
|
16 × 10/100 Mbps PoE ports, 1 × gigabit RJ45 port, and 1 × gigabit fiber optical port
|
|
Port Type
|
RJ45 port, full duplex, MDI/MDI-X adaptive
|
|
Working Mode
|
Standard mode (default); Extend mode
|
|
Standard
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
|
|
Forwarding Mode
|
Store-and-forward switching
|
|
Ports for Long-Distance Transmission
|
Ports 9 to 16
|
|
MAC Address Table
|
4 K
|
|
Internal Cache
|
2.75 Mbits
|
|
Switching Capacity
|
7.2 Gbps
|
|
Packet Forwarding Rate
|
5.356 Mpps
|
|
High Priority Ports
|
Ports 1 to 8
|
|
PoE Power Supply
|
|
|
PoE Standard
|
IEEE 802.3af, IEEE 802.3at
|
|
PoE Power Pin
|
End-span: 1/2(-), 3/6(+) Mid-span: 4/5(+), 7/8(-) 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
|
|
PoE Port
|
Ports 1 to 16
|
|
Max. Port Power
|
30 W
|
|
PoE Power Budget
|
130 W
|
|
Dialing Function
|
|
|
Long Range
|
Ports 9 to 16: up to 300 m; and the speed rate of the port is 10 Mbps.
|
|
General
|
|
|
Dimension (W × H × D)
|
266 mm × 44.5 mm × 220.8 mm (10.5” × 1.8” × 8.7”)
|
|
Storage Temperature
|
-40 °C to 85 °C (-40 °F to 185 °F)
|
|
Storage Humidity
|
5% to 95% (no condensation)
|
|
Gross Weight
|
2.58 kg (5.69 lb)
|
|
Net Weight
|
1.8 kg (4.0 lb)
|
|
Power Consumption in Idle
|
20 W
|
|
Shell
|
Metal material
|
|
Operating Temperature
|
-10 °C to 55 °C (14 °F to 131 °F)
|
|
Operating Humidity
|
5% to 95% (no condensation)
|
|
Power Supply
|
100 to 240 VAC, 50/60 Hz, Max. 2.5 A
|
|
Max. Power Consumption
|
150 W
|
|
Approval
|
|
|
EMC
|
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
|
|
Safety
|
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
|
|
Chemistry
|
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
|
Data Sheet
Qucik Start Guide
