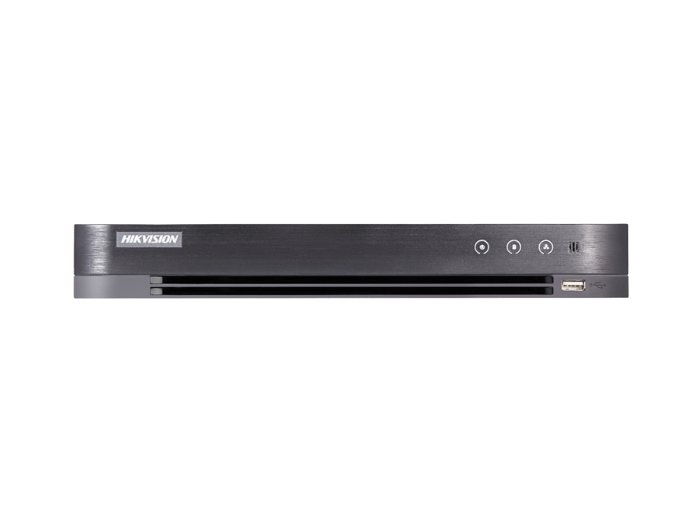

- 4 channels and 2 HDDs 1U DVR
- Efficient H.265 pro+ compression technology
- Encoding ability up to 8 MP @ 15 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 16 network cameras can be connected
Call for Price
Specification
Description
|
Perimeter Protection
|
|
Line Crossing Detection/Intrusion Detection
|
8-ch
|
Recording
|
Video Compression
|
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
|
|
Encoding Resolution
|
8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
|
|
Frame Rate
|
Main stream: 8 MP@15 fps/5 MP@20 fps/3K@20 fps/3 MP@18 fps 4 MP/1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
|
|
Video Bitrate
|
32 Kbps to 16 Mbps
|
|
Dual-stream
|
Support
|
|
Stream Type
|
Video, Video & Audio
|
|
Audio Compression
|
G.711u
|
|
Audio Bitrate
|
64 Kbps
|
Video and Audio
|
IP Video Input
|
8-ch (up to 16-ch) Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
|
|
Analog Video Input
|
8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
|
|
HDTVI Input
|
8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
|
|
AHD Input
|
5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30
|
|
HDCVI Input
|
5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
|
|
CVBS Input
|
PAL/NTSC
|
|
HDMI Output
|
1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
|
|
VGA Output
|
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
|
|
CVBS Output
|
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
|
|
Audio Input
|
4-ch RCA (2.0 Vp-p, 1 KΩ) 8-ch via coaxial cable
|
|
Audio Output
|
1-ch, RCA (Linear, 1 KΩ)
|
|
Two-Way Audio
|
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
|
|
Synchronous playback
|
8-ch
|
|
Network
|
|
Remote Connection
|
64
|
|
Total Bandwidth
|
128 Mbps
|
|
Network Protocol
|
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
|
|
Network Interface
|
1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
|
Auxiliary Interface
|
Serial Interface
|
RS-485 (half-duplex)
|
|
SATA
|
2 SATA interfaces
|
|
Capacity
|
Up to 10 TB capacity for each disk
|
|
Alarm In/Out
|
8/4
|
|
USB Interface
|
Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0
|
|
General
|
|
Power Supply
|
12 VDC, 3.1 A
|
|
Consumption
|
≤20 W (without HDD)
|
|
Working Temperature
|
-10 °C to +55 °C (+14 °F to +131 °F)
|
|
Working Humidity
|
10% to 90%
|
|
Dimension (W × D × H)
|
380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
|
|
≤ 2 kg (4.4 lb) (without HDD)
|
