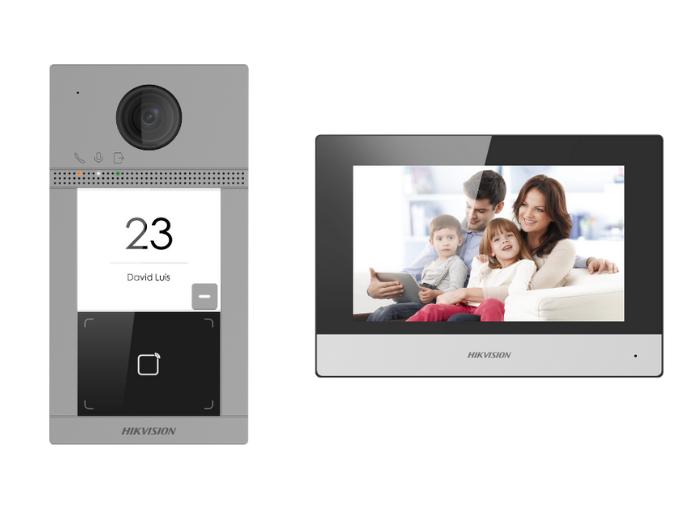

- IP video intercom kit for villa or house, only one call button;
- DS-KV8113-WME1 x1;
- DS-KH6320-WTE1 x1;
- PSU x2(-P modle) x1;
- 16GB TF card x1;
- POE switch(-S modle) x1;
Call for Price
SKU: DS-KIS604P
Categories: All Products, IP Video Intercom, Video Intercom
Tag: Hikvision Video Intercom
Specification
Description
|
Door station/System parameters
|
|
|
Operation system
|
Embedded Linux operation system
|
|
Flash
|
32 MB
|
|
RAM
|
128 MB
|
|
Door station/Video parameters
|
|
|
Camera
|
2MP HD camera
|
|
Night vision
|
Low illumination IR supplement mode:3 m
|
|
Backlight compensation
|
Support
|
|
Digital noise reduction
|
Support
|
|
WDR
|
True WDR
|
|
Field of view
|
Horizontal: 129° Vertical: 75°
|
|
Video Compression Standard
|
H.264
|
|
Stream
|
Main stream: 1080p@30fps, 720p@25fps Sub stream: D1@25fps
|
|
Motion detection
|
Support
|
|
Flash-avoid frequency
|
50 Hz, 60 Hz
|
|
Door station/Audio parameters
|
|
|
Audio input
|
Built-in omnidirectional microphone
|
|
Audio output
|
Built-in loudspeaker
|
|
Audio quality
|
Noise suppression and echo cancellation
|
|
Audio compression standard
|
G.711 U
|
|
Audio compression Rate
|
64 Kbps
|
|
Audio intercom
|
Two-way audio communication
|
|
Door station/Network parameters
|
|
|
Network protocol
|
TCP/IP, RSTP
|
|
Wired network
|
10/100 Mbps Ethernet
|
|
Door station/Device interfaces
|
|
|
RS-485
|
1
|
|
Alarm input
|
4
|
|
Debugging port
|
1
|
|
Grounding
|
1
|
|
TAMPER switch
|
1
|
|
Door station/General
|
|
|
Power consumption
|
＜ 10 W
|
|
Working temperature
|
e -40° C to 53° C(-40° F to 127.4° F)
|
|
Working humidity
|
10% to 95%
|
|
Dimension
|
174 mm × 91 mm × 29 mm
|
|
Installation
|
Surface mounting/ Flush mounting
|
|
Protection level
|
IP65, IK08
|
|
Indicator
|
3
|
|
Power supply
|
IEEE802.3af, standard PoE 12 VDC
|
|
Indoor station/System parameters
|
|
|
Operation system
|
Embedded Linux operation system
|
|
Memory
|
128 MB
|
|
Flash
|
32 MB
|
|
Indoor station/Display parameters
|
|
|
Display screen
|
7-inch colorful TFT screen
|
|
Display resolution
|
1024 × 600
|
|
Operation method
|
Capacitive touch screen
|
|
Indoor station/Audio parameters
|
|
|
Audio input
|
Built-in omnidirectional microphone
|
|
Audio output
|
Built-in loudspeaker
|
|
Audio quality
|
Noise suppression and echo cancellation
|
|
Audio compression standard
|
G.711 U
|
|
Audio compression Rate
|
64 Kbps
|
|
Indoor station/Network parameters
|
|
|
Wired network
|
10/100 Mbps self-adaptive
|
|
Wireless network
|
Wi-Fi 802.11 b/g/n
|
|
Protocol
|
TCP/IP, SIP, RTSP
|
|
RS-485
|
1 RJ-45 10/100 Mbps self-adaptive
|
|
Indoor station/Device interfaces
|
|
|
RS-485
|
1
|
|
Alarm input
|
8-ch alarm inputs
|
|
Relay output
|
2
|
|
TF card
|
Max to 32 G, SD 2.0 or lower version
|
|
Indoor station/General
|
|
|
Power consumption
|
≤ 6 W
|
|
Working temperature
|
‘-10 °C to 55 °C (14 °F to 131 °F)
|
|
Working humidity
|
10% to 90%
|
|
Dimension (L x W x H)
|
200 mm × 140 mm × 15.1 mm (7.9″ × 5.5 × 0.6″)”
|
Data Sheet
| Category | Line | Default Warranty Period(Month) |
|---|---|---|
| Analog cameras | Analog cameras | 24 |
| DVR | 7 Series DVR | 24 |
| 89 Series DVR | 36 | |
| Board | 24 | |
| DVS | DVS | 24 |
| Hilook | Hilook | 12 |
| IP cameras (IPC) | 1 Series IPC | 12 |
| 2 Series IPC | 24 | |
| 4/5/7/8 Series IPC | 36 | |
| 6 series IPC | 36 | |
| Zoom camera/zoom camera module | 36 | |
| Speed dome | AE/DE Series speed dome | 24 |
| AF/DF Series speed dome | 36 | |
| PTZ | 36 | |
| Anti-corrosion/anti-explosion | 36 | |
| Thermal imaging | Thermal imaging | 36 |
| NVR | 7 Series NVR | 24 |
| 89 Series NVR | 36 | |
| Hilook | Hilook | 12 |
| Large screen | LCD | 12 |
| LED | 12 | |
| DLP | 12 | |
| Displayer (≤24 inches) | 12 | |
| Displayer (>24 inches) | 12 | |
| Interactive display | 12 | |
| Information release screen | 12 | |
| Control | Integrated platform | 24 |
| Decoder | 36 | |
| Video wall controller | 36 | |
| Transmission | Optical transceiver/switch | 24 |
| Transmission cable | 60 | |
| All-in-one server | Blazer | 36 |
| Storage | SAN | 36 |
| Data center | Data center | 24 |
| Universal server | 36 | |
| Intelligent transportation system | Traffic cameras | 24 |
| Supplement light and auxiliary | 24 | |
| Traffic server | 24 | |
| Signal control | 24 | |
| RFID | 24 | |
| Mobile | Mobile | 24 |
| Portable terminal | PVR system | 24 |
| Portable speed dome | 24 | |
| Body camera | 24 | |
| Others | 24 | |
| Entrance & exit | Entrance & exit | 24 |
| Parking lot | 24 | |
| Access control | Access controller | 24 |
| Access control terminal | 24 | |
| Card reader | 24 | |
| Card issuer /card enrollment station | 24 | |
| Access Portal | 12 | |
| Lock | Smart lock | 12 |
| Intercom | Video intercom | 24 |
| Alarm | Emergency alarm | 24 |
| Auto-alarm（excluding Pyronix） | 36 | |
| Consumer storage device – portable storage | M100 Series | 12 |
| Portable T100 Series | 36 | |
| Consumer storage device – NAS | W100 Series | 12 |
| H100 Series | Device: 24
HDD/SSD: 36 |
|
| Consumer SSD | E100, E100N/E1000N Series | 36 or SSD lifespan, whichever occurs first. |
| Enterprise SSD | S100, S200 Series | 36 or SSD lifespan, whichever occurs first. |
| Surveillance SSD | V100/V200 Series | 36 or SSD lifespan, whichever occurs first. |
| Consumer memory card | E1/E10 Series | 84 or memory card lifespan, whichever occurs first. |
| Surveillance memory card | H1, L1/L2, H10 Series | 24 or memory card lifespan, whichever occurs first. |
| EZVIZ | All Series | 12 Months |
