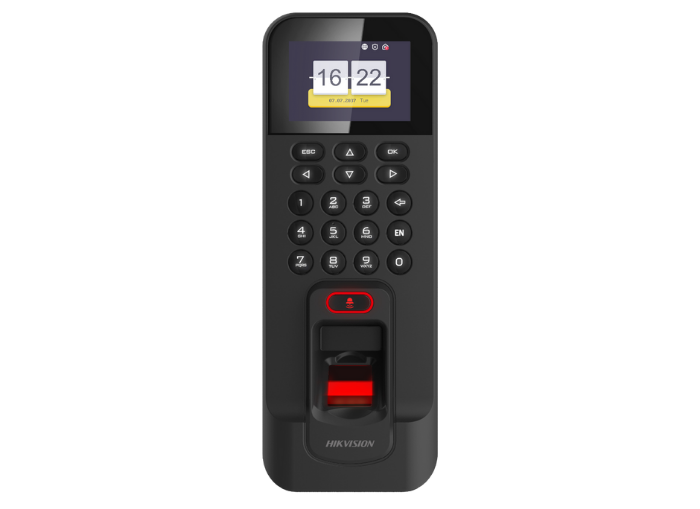

- Standalone access control fingerprint terminal
- LCD display screen
- 3,000 fingerprints, 3,000 cards and 100,000 events storage
- Built-in card reader for Mifare1 card
- Communication via TCP/TP and Wi-Fi
- RS-485, wiegand interface
- EHome for public network communication
- Alarm input and output interface
- Multiple time attendance status
Call for Price
Specification
Description
|
General
|
|
|
Communication Interface
|
TCP/IP, RS-485 (For Secure Door Control Unit), Wiegand Output (W26/W34) and Input (Wiegand 26/34)
|
|
Working Temperature
|
-10 ° C to 55 ° C (14 ° F to 131 ° F)
|
|
Power Supply
|
12 VDC/2 A
|
|
Audio
|
1 Buzzer and 1 Loudspeaker
|
|
LED Indicator
|
Power/Status (Red/Green)
|
|
LCD Screen
|
2.4-inch (320 × 240 LCD-TFT Display Screen)
|
|
Fingerprint Capacity
|
Up to 3000 Fingerprints; Up to 10 Fingerprints for Each Person
|
|
Storage
|
Up to 3000 Valid Cards;Up to 100,000 Event Records; Up to 150,000 Attendance Records
|
|
Card Reading Mode
|
Not Support
|
|
Input Interface
|
Exit Button × 1, Door Sensor × 1 and Alarm Input × 1
|
|
Output Interface
|
Relay (Lock Output) × 1, and Alarm Output × 1
|
|
Operating System
|
Linux
|
|
Fingerprint Comparing Mode
|
1:1 and 1:N, N=3000
|
|
Card Reading Response Duration
|
< 1 s
|
|
Fingerprint Authentication Duration
|
< 1 s
|
|
FAR(False Accept Rate)
|
≤ 0.001 %
|
|
FRR (False Rejection Rate)
|
≤ 0.01 %
|
|
Fingerprint Recognizer
|
Optical Fingerprint Recognizer Module
|
|
External Card Reader
|
Standard Wiegand26/34
|
|
Card Reading Distance
|
0 to 5 cm
|
|
Keyboard
|
Keyboard (Back Light)
|
|
Reset Key
|
× 1
|
|
Wi-Fi
|
Support
|
|
Wiegand Interface
|
Output: Wiegand 26/34;Input: Wiegand 26/34
|
|
Transmission Rate
|
TCP/IP: 10/100Mbps, Self-adaptive;RS485: 19200 bps-N-8-1
|
|
USB
|
USB 2.0; Type A
|
