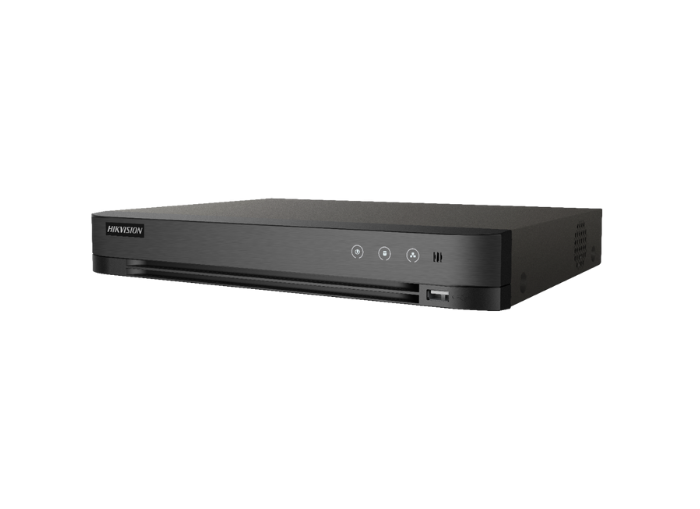

- 8 channels and 1 HDD 1U AcuSense DVR
- Providing detailed information with face detection
- False alarm reduction by human and vehicle target classification based on deep learning
- Efficient H.265 pro+ compression technology
- Encoding abilty up to 8 MP @ 8 fps, 5 MP @ 12 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 16 network cameras can be connected.
Call for Price
Specification
Description
|
Recording
|
|
Encoding resolution
|
Main stream: 8 MP@8 fps/5 MP@12 fps/ 4 MP@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
|
|
Video bit rate
|
32 Kbps to 10 Mbps
|
|
Video compression
|
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
|
|
Dual stream
|
Support
|
|
Stream type
|
Video, Video & Audio
|
|
Audio compression
|
G.711u
|
|
Audio bit rate
|
64 Kbps
|
|
Video and Audio
|
|
Audio input
|
1-ch, RCA (2.0 Vp-p, 1 KΩ)
|
|
Audio output
|
1-ch, RCA (Linear, 1 KΩ)
|
|
Synchronous playback
|
8-ch
|
|
IP video input
|
8-ch (up to 16-ch);Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
|
|
HDTVI input
|
8 MP, 5 MP, 4 MP, 3 MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
|
|
HDCVI input
|
4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
|
|
CVBS input
|
PAL/NTSC
|
|
Two-way audio
|
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
|
|
Analog video input
|
8-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
|
|
AHD input
|
5 MP, 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
|
|
CVBS output
|
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
|
|
HDMI/VGA output
|
HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI/VGA simultaneous output
|
|
Network
|
|
Network protocols
|
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
|
|
Remote connections
|
64
|
|
Network interface
|
1,RJ45 10M/100M/1000M self-adaptive Ethernet interface
|
|
Auxiliary interface
|
|
Capacity
|
Up to 10 TB capacity for each disk
|
|
Serial interface
|
RS-485 (half-duplex)
|
|
USB interface
|
1 × USB 2.0； 1 × USB 3.0
|
|
Alarm in/out
|
N/A
|
|
SATA
|
1 SATA interface
|
|
General
|
|
Consumption(without HDD)
|
≤ 10 W
|
|
Working humidity
|
10% to 90%
|
|
Power supply
|
12 VDC
|
|
Working temperature
|
-10 °C to +55 °C (+14 °F to +131 °F)
|
|
Dimensions(W × D × H)
|
315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
|
|
Weights (without HDD)
|
≤ 2 kg (4.4 lb)
|
