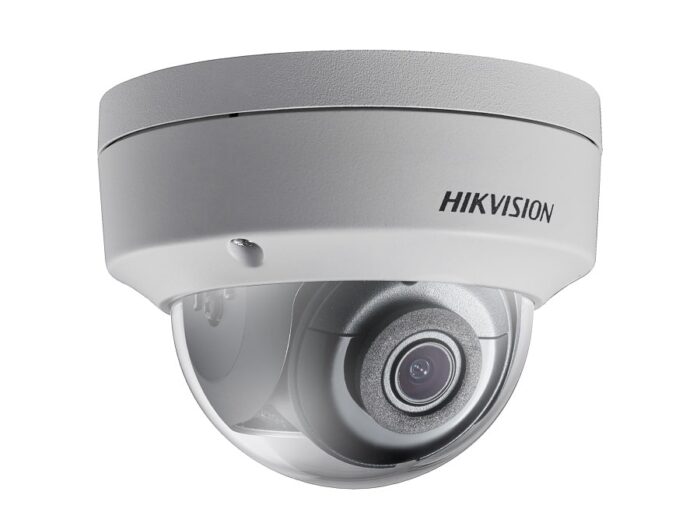

• 1/3″ Progressive Scan CMOS
• 4 Megapixel – 2688 × 1520@30fps
• 2.8/4/6/8mm fixed lens
• Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
• H.265+, H.265, H.264+, H.264
• 2 Behavior analyses
• 120dB WDR
• BLC/3D DNR/ROI
• IP67
• Built-in micro SD/SDHC/SDXC card slot, up to 128 GB
Call for Price
SKU: DS-2CD2143G0-I
Categories: 30MTS IR Range, 4 Megapixel Camera, All Products, EasyIP 2.0 Plus, Fixed Dome Camera, Network Cameras
Tags: 120db WDR, 3D-DNR, CCTV, Fixed Dome Camera, H.265+, Hikvision, Hikvision EasyIP 2.0 Plus, Hikvision Mauritius, InfraRed, IP Camera, IP67, MicroSD Card, PoE, Power
Specification
Description
| Camera | |
|---|---|
| Image Sensor: | 1/3″ Progressive Scan CMOS |
| Signal System: | PAL/NTSC |
| Min. Illumination: | Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter time: | 1/3 s to 1/100,000 s |
| Slow shutter: | Support |
| Lens: | 2.8 mm @ F1.6: horizontal FOV: 103°, vertical FOV: 58°, diagonal FOV: 123° 4 mm @F1.6: horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 99° 6 mm @F1.6: horizontal FOV: 51°, vertical FOV: 29°, diagonal FOV: 58° 8 mm @F1.6: horizontal FOV: 39°, vertical FOV: 22°, diagonal FOV: 45° |
| Lens Mount: | M12 |
| Adjustment Range: | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
| Day& Night: | IR cut filter with auto switch |
| Wide Dynamic Range: | 120 dB |
| Digital noise reduction: | 3D DNR |
| Focus: | Fixed |
|
Compression Standard |
|
|---|---|
| Video Compression: | H.265+/H.265/H.264+/H.264/MJPEG |
| Video bit rate: | 256Kbps~16Mbps |
| Audio Compression: | -S: G.711/G.722.1/G.726/MP2L2/PCM |
| Audio bit rate: | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
| Triple Streams: | Yes |
|
Image |
|
|---|---|
| Max. Image Resolution: | 2688 × 1520 |
| Frame Rate: | 50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080) 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080) |
| Sub Stream: | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream: | 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) |
| Image Enhancement: | BLC/3D DNR/BLC |
| Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
| Target Cropping: | No |
| ROI: | 1 fixed region for main stream and sub-stream |
| Day/Night Switch: | Day/Night/Auto/Schedule/Triggered by alarm in (-S) |
|
Network |
|
|---|---|
| Network Storage: | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger: | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP?, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| General Function: | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering |
| System Compatibility: | ONVIF (Profile S, Profile G),ISAPI |
|
Interface |
|
|---|---|
| Audio: | with -S model：1 input (line in), 1 output (line out), mono sound, terminal block |
| Communication Interface: | 1 RJ45 10M / 100M Ethernet interface |
| Alarm: | with -S model：1 input, 1 output (max. 12 VDC, 30 mA), terminal block |
| On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button: | Yes |
|
Audio |
|
|---|---|
| Environment Noise Filtering: | Support(-S) |
| Audio Sampling Rate: | 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz |
|
Smart Feature-set |
|
|---|---|
| Behavior Analysis: | Line crossing detection, intrusion detection |
| Line Crossing Detection: | Cross a pre-defined virtual line |
| Intrusion Detection: | Enter and loiter in a pre-defined virtual region |
| Recognition: | Face Detection |
|
General |
|
|---|---|
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
| Power Supply: | 12 VDC ± 25%, PoE (802.3af Class3) |
| Power Consumption: | 12 VDC, 0.5A, max. 6W PoE (802.3af, 37V to 57V), 0.2A to 0.1A, max. 7.5W |
| Weather Proof: | IP67 |
| IR Range: | Up to 30m |
| Dimensions: | Camera: Φ 111 × 82.4 mm (Φ 4.4″ × 3.2″) Package: 134 × 134 × 108 mm (5.27″ × 5.27″ × 4.25″) |
| Weight: | Camera: Approx. 610 g (1.3 lb.) With Package: Approx. 820 g (1.8 lb.) |
Datasheet of DS-2CD2143G0-I(S)
User Manual of DS-2CD2143G0-I(S)
Quick Start Guide of DS-2CD2143G0-I(S)
