• 2 Megapixel high-performance CMOS
• Analog HD output, up to 1080P resolution
• 2.8 – 12mm vari-focal lens
• True Day/Night, Smart IR
• Up to 40m IR distance
• IP66 weatherproof
• OSD menu
• 24V AC/ 12V DC (-A)
• Up the Coax(HIKVISION-C Protocol)
Call for Price

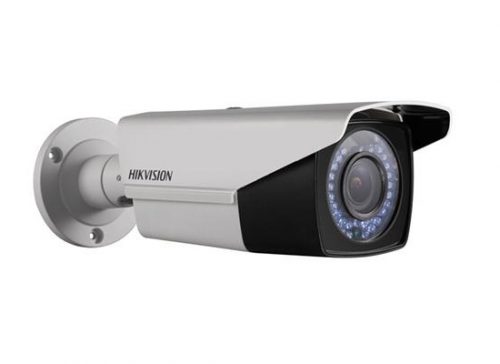

SKU: DS-2CE16D1T-VFIR3
Categories: 1080p, 2 Megapixel Camera, All Products, Analog Cameras, Fixed Bullet Camera, Turbo HD, Vari-focal
Tags: 2 Megapixel Camera, Analog Camera, Automatic White Balance, Bullet Camera, CCTV, EXIR Technology, HD, Hikvision, Hikvision Mauritius, InfraRed, IP66, Mobile Remote Surveillance, Turbo HD, Turbo HDMotorized VF, Vari-Focal Bullet Camera
Specification
Description
| Camera | ||
|---|---|---|
| Image Sensor: | 2MP CMOS Image Sensor | |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 1930(H) × 1088(V) | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens Mount: | φ14 | |
| Adjustment Range: | Pan: 0 – 360°, Tilt: 0 – 90°, Rotation: 0 – 360° | |
| Day& Night: | IR cut filter with auto switch | |
| Video Frame Rate: | 1080p@25fps/1080p@30fps | |
| HD Video Output: | 1 Analog HD output | |
| Synchronization: | Internal Synchronization | |
| S/N Ratio: | More than 62 dB | |
| Up the Coax: | Support | |
|
Menu |
||
|---|---|---|
| Camera ID: | On/Off (0-255) | |
| D/N Mode: | Color/ BW/ Auto/ EXT | |
| Auto White Balance: | Auto/User/Push/8000K/6000K/4200K/3000K | |
| Private Mask: | On/Off, maximum 8 zones | |
| Motion Detection: | On/Off, maximum 4 zones | |
| BLC: | On/Off | |
| AGC: | Support | |
| Language: | English/Chinese | |
|
General |
||
|---|---|---|
| Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
|
| Power Supply: | 12 VDC±15% -A: 12 VDC±15%, 24 VAC±15% |
|
| Weather Proof: | IP66 | |
| IR Range: | Up to 40m | |
| Communication : | Up the coax Protocol: HIKVISION-C(Coaxitron) |
|
| Dimension: | 92 × 84.8 × 269.6mm(3.62” × 3.34” × 10.6”) | |
| Weight: | 690g (1.52 lb) | |
Datasheet of DS-2CE16D1T-VFIR3
User Manual of DS-2CE16D1T-VFIR3
